GreeNaval series is an environmentally friendly series that keeps comfort and efficiency at the highest level. In addition to being an option that you can get at reasonable prices in the electric yacht market, GreeNaval allows you to have pleasant voyages with its spacious and modern interior design.
The advantage of the GreeNaval series, where you can find innovation and functionality together, is that it is made of light and easily machinable aluminum. Aluminum is the world's first-class yacht building material, and its cost is at acceptable levels.
GreeNaval offers its customers 4 different options depending on their needs and wishes.
Full green option / Electric motor / Hybrid system / Diesel engine
The electric propulsion systems offer a clean, green and quiet alternative to the classical motor yachts.
Sleek and assertively proportioned exterior, inviting and brightly lit interior, innovative system and modern features make GreeNaval the best hybrid motor yacht on the market.

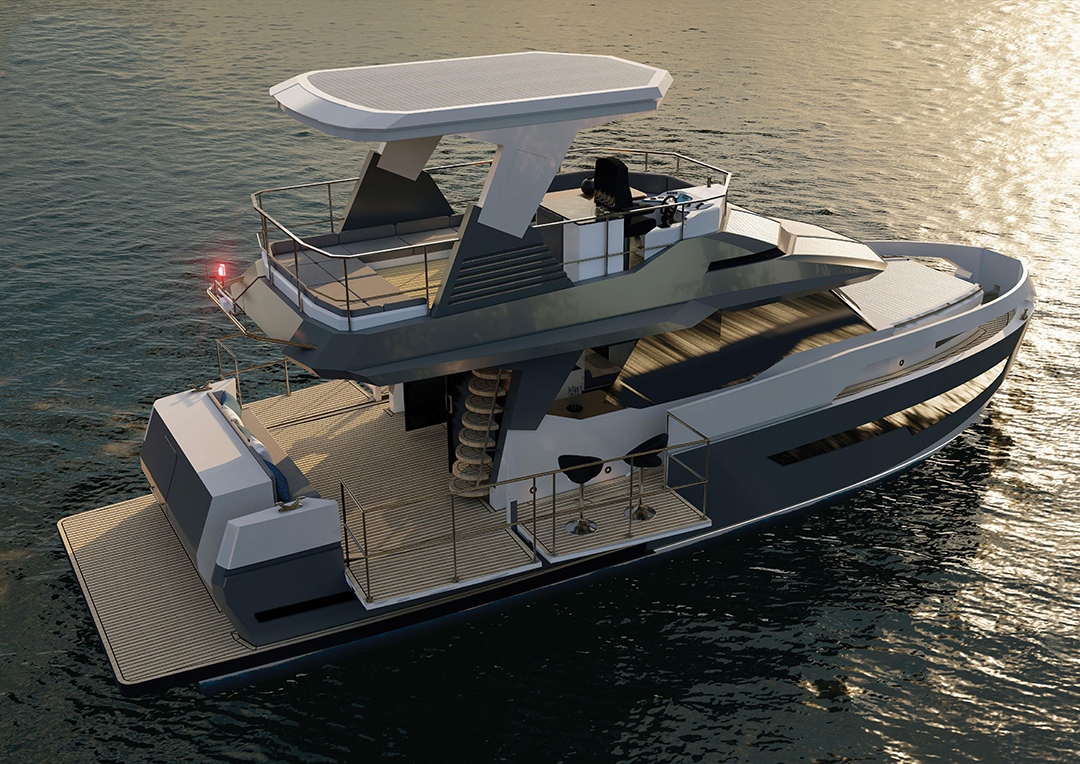

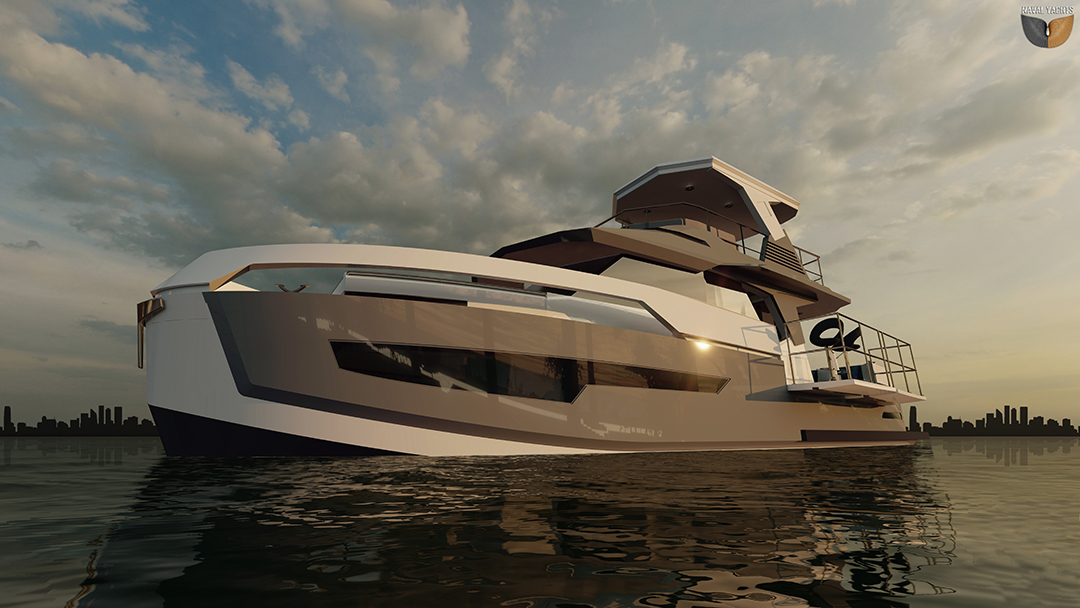

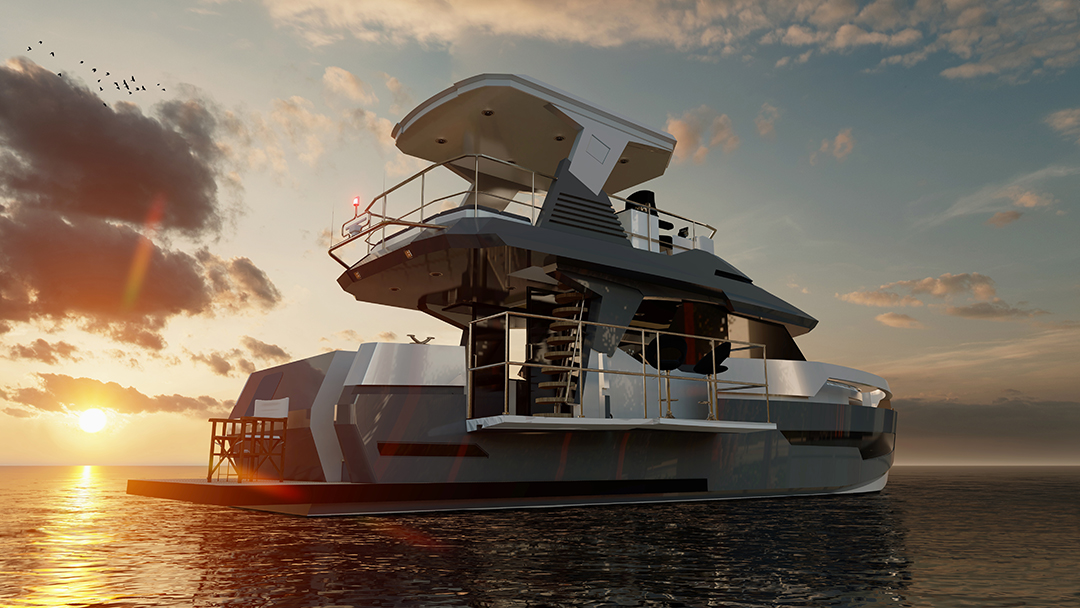

Naval Yachts GreeNaval 47 was designed for large families who care for the environment and for their budgets. Naval Yachts GreeNaval 47 as a hybrid yacht, distinct from the other hybrid boats in its class, has an electric motor.
Naval Yachts GreeNaval 47 has 20 N.m. daily range and is able to cruise for 2 hours by solar panels. In addition, thanks to the DC generator, Naval Yachts GreeNaval 47 has a 2.000 N.m range with 6 knots speed.
In our GreeNaval yachts, we use German Torqeedo technology. This system is an eco-friendly system that works at an exceptional level of perfomance and in accordance with international safety standards.
It converts the solar energy it receives from solar panels into the voltage that will be used on the boat thanks to MMP tracking. The converted energy charges batteries with a power of 24V.
The maximum speed is 14 knots. The cruising speed is ise 7 knots. 2000+ Nautical miles can be made with a speed of 7 knots.
GN47 has a serial hybrid propulsion. 2 x 100KW electric motors run the propellers at 800 rpm. The genset generates 22kva electricity and feed the lithium batteries. Lithium battery capacity is 160kwh and from BMW i3 batteries with 9 years warranty.
HYBRID SYSTEM
The equipment that makes up the hybrid system is listed.
It converts the solar energy it receives from solar panels into the voltage that will be used on the boat thanks to MMP tracking. The converted energy charges batteries with a power of 24V.
24 V batteries supply Torqeedo lithium batteries via the system connection panel. Li-Ion batteries have a rated voltage of 360V. The weight of each of the batteries is 278 kg and there are 4 pieces. These batteries transmit power to the Torqeedo electric motor. When the power requirement cannot be met through the solar panels, the diesel generator is activated and system electricity is generated through the generator. 12 V batteries are the power source of the system for starting the diesel generator.
It works to supply 360 V batteries. This electric motor produces continuous power from 25 to 100 kW at 360 dec. It transmits the generated power directly to the Controller Pitch Propeller (CPP) with the help of a stainless shaft. Since the transmission of power is by electricity, no torque loss occurs and it is more efficient than a diesel engine.
You can control the system through the built-in display, and also change the management by observing the parameters.
The max speed is 14 knots. The cruise speed is 7 knots. it is capable of doing 2000+ Nautical miles with a speed of 7 knots.
FRESH WATER CAPACITY: 500 L / 132 USG
BLACK WATER CAPACITY: 335 L / 88,5 USG
GREY WATER CAPACITY: 385 L / 101 USG
FUEL CAPACITY: 2200 L / 581 USG
